Where does the 6NP rule come from?

The 6NP rule is a shortcut for estimating how many floating-point operations are needed to train a dense neural network. It can be summarized like so:

\text{Training FLOPs} \approx 6 \times \text{parameters} \times \text{tokens}

In this blog post we are going to walk our way through understanding where does this simple rule come from.

Let’s define $N$ as the number of trainable parameters and $P$ the number of tokens processed during training.

1) What is a FLOP?

A FLOP is a floating-point operation. For instance $a \times b + c$ is one multiplication followed by one addition. This counts as 2 FLOPs.

2) Forward pass

Consider our network such that

y = \sum_i w_i x_i.

So for every weight $w_i$ , we do:

\mathrm{accumulator} \leftarrow \underbrace{\mathrm{accumulator} +}_{\text{1 addition}} \underbrace{w_i x_i}_{\text{1 multiplication}}

Therefore we have 2 FLOPs per weight. Now let’s try to find back this result but using matrix multiplications instead.

Let’s consider a linear layer:

Y = XW \qquad \text{with } W \in \mathbb{R}^{d_{\mathrm{in}} \times d_{\mathrm{out}}}.

The number of parameters in $W$ is

N_W = d_{\mathrm{in}} \cdot d_{\mathrm{out}}.

Let’s consider one token $x \in \mathbb{R}^{d_{\mathrm{in}}}$ from $X$ . We have $y = xW$ . In this operation we have $d_{\mathrm{out}}$ outputs and each one of these outputs require a dot product involving $d_{\mathrm{in}}$ values.

So the cost for one token is

2d_{\mathrm{in}}d_{\mathrm{out}} = 2N_W.

Hence the forward FLOPs per token is $2N_W$ .

However we have to remember that training involves two stages : forward $\to$ loss $\to$ backward

The forward pass computes the prediction. The backward pass helps us understand how should parameters change to improve our prediction.

3) Backward pass

During the forward prediction we had $Y = XW$ . Now during backprop we want to compute

\frac{\partial L}{\partial X} \qquad\text{and}\qquad \frac{\partial L}{\partial W}.

This is what is going to tell us how our loss change with respect to the inputs and the parameters.

The gradient with respect to the inputs is

\frac{\partial L}{\partial X} = \frac{\partial L}{\partial Y} W^\top

while the gradient with respect to the weights is

\frac{\partial L}{\partial W} = X^\top \frac{\partial L}{\partial Y}.

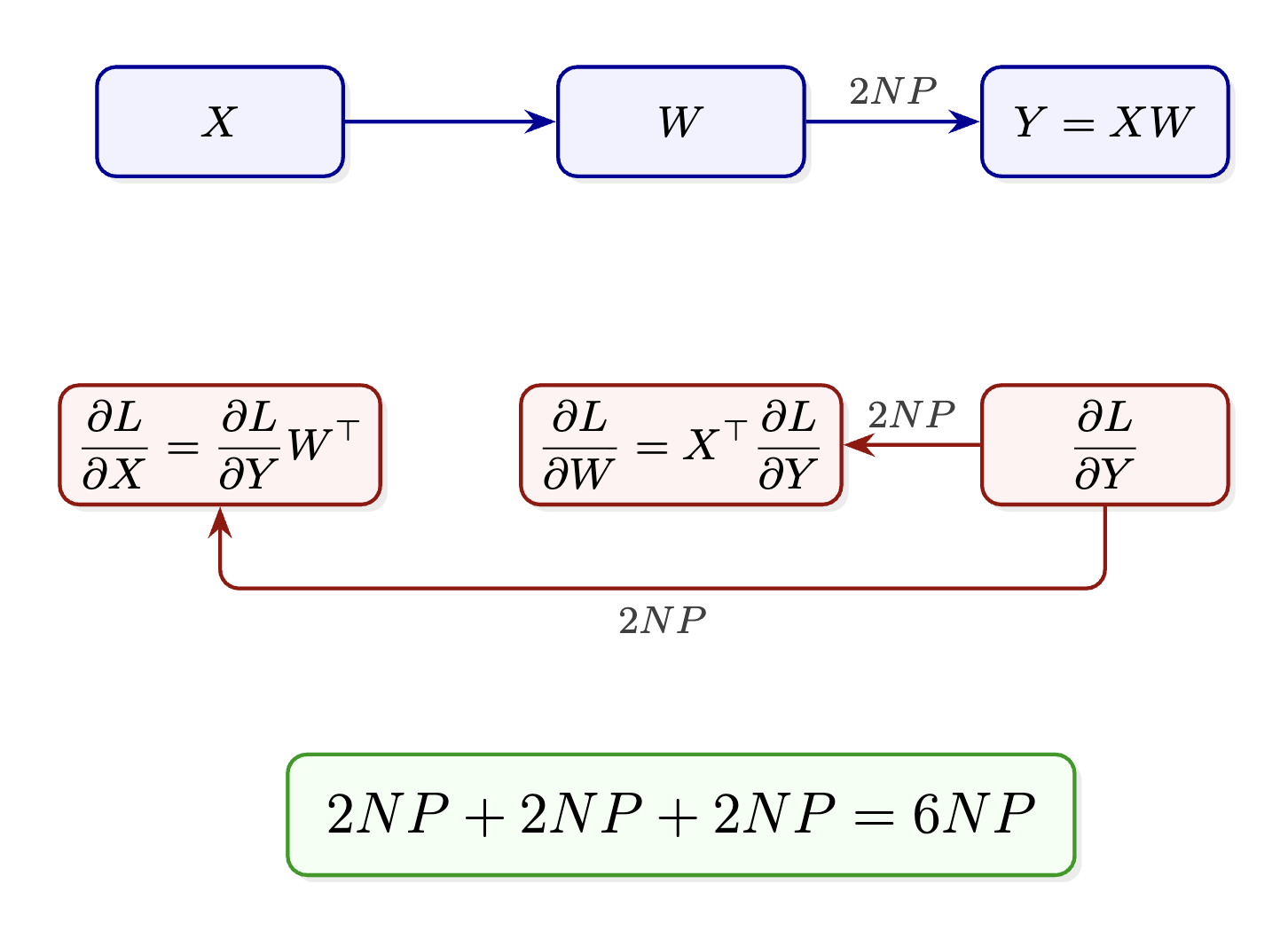

So for the backpropagation step we have two more matrix multiplications. So we have

\text{forward: } XW \qquad; \text{backward: } \frac{\partial L}{\partial Y} W^\top \qquad; \text{backward: } X^\top \frac{\partial L}{\partial Y}.

Each matrix costs $2N$ FLOPs like we saw before.

So for one token

\underbrace{2N}_{\text{forward}} + \underbrace{2N}_{\text{gradient wrt activations}} + \underbrace{2N}_{\text{gradient wrt weights}} = 6N.

And now process $P$ tokens instead of one and you get $6NP$ . Next time you will hear about that rule, you will know the reason why :)
